Electron Beam Alignment for Thermo Fisher Scientific

Application SoftwareEmbedded SoftwareQuality AssuranceSystem Software

Electron microscopes use a wolfram filament as a source of electrons. The source can be compared to a light bulb filament.

Customer

Competences

Custom Application ServerDeconvolutionDesktop Application SoftwareImage processingMathematical modelingNon-linear Curve FittingPrecise TimingSoftware DevelopmentSystem Control SoftwareUI

Technology

C++C#Python

About the Case Study _

Benefits for the customer and end-users:

  • 50% time reduction on electron source assembly during the manufacturing process.
  • Procedure automation enabling repeatability and reusability of the setting-up process between different models of electron microscopes.
  • Thanks to our solution, the end users observe a 66% reduction in downtime during machine preset.
  • Automation decreased demand for users’ technical skills. The microscope can be operated by a broader range of end users bringing more revenue to the manufacturer.

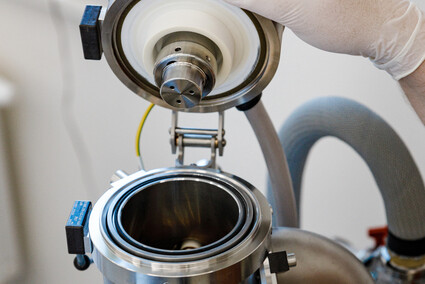

Electron microscopes use a wolfram filament as a source of electrons. The source can be compared to a light bulb filament; both are subject to wear and tear and need to be exchanged in time. In our case, it’s after approximately 100 hours of use. Due to production tolerance, individual electron emitters can slightly differ; therefore, each user must repeat the aligning procedure.

The alignment consists of two parts: setting filament temperature and adjusting beam direction. Before automation, both steps used to be done manually. Our software removes the need for manual setup and makes the results correct and repeatable. In order to complete the task, we first collaborated with Thermo Fisher on the physics of the solution. The following technical and mathematical algorithms have been developed at Edhouse. We have also implemented all necessary measurements and completed all validation and verification tasks.

Customer Feedback _

profile picture

„Edhouse is our strategic SW development partner more then 15 years. With Edhouse, we've experienced excellence in quality, on-time project completion, and continuous innovation. Thermo Fisher Scientific is delivering high-tech systems serving science, and SW development has a big overlap with physics and integration of high-tech low-level components. At the same time, our products are used by experts to simplify their work. Edhouse is successfully working with us in this unique environment, enabling our customers to make the world healthier, cleaner and safer.“

Filip Matuška Director Software – Thermo Fisher Scientific
